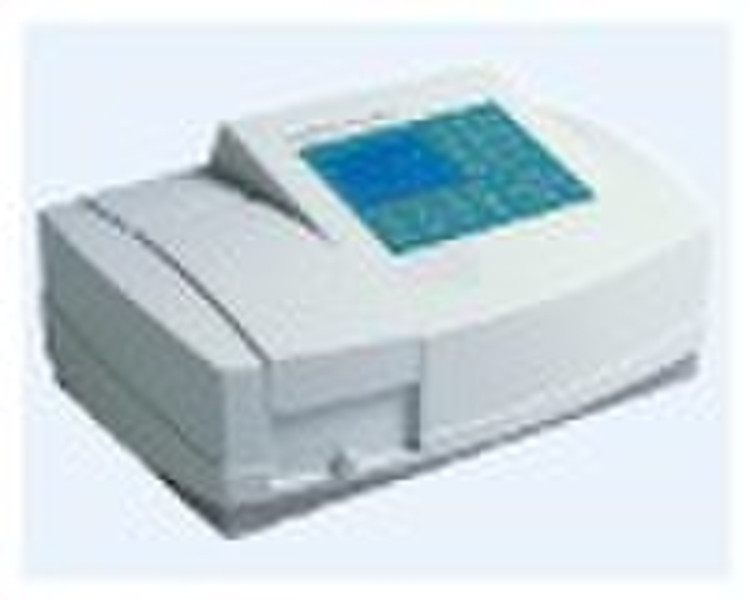

UV-4802 Double Beam UV/Vis Spectrophotometer

UV-4802 is a double beam design. It is a stand-alone model with 1.8 nm fixed bandwidth and has all the features that SpectroQuest line offers in a stand-alone unit. The two detectors are measuring sample and reference respectively and simultaneously for optimizing measurement accuracy. It provides excellent performance for measurements in the range of 190nm to 1100nm. It is suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analyses, kinetics, spectrum scanning, multiple components and DNA/Protein. Optional PC download software and PC Windows? Application software make this instrument versatile. Wavelength Range: 190-1100nm Spectral Bandwidth (slits): 1.8nm Optical System: DoubleBeam, Grating1200lines/mm Wavelength Accuracy: &plusmn;0.3nm Wavelength Resolution: &plusmn;0.1nm Wavelength Repeatability: &plusmn;0.2nm Photometric Range: 0-200%T, -0.3-3A, 0-9999Conc Photometric Accuracy: &plusmn;0.3%T Photometric Repeatability: Better than 0.2%T Stray Light: <0.05%T Baseline Flatness: &plusmn;0.002A Stability: 0.001A/h @500nm Scanning Speed: Hi, Med., Low. Max. 1000nm/min Light Source: Halogen, Deuterium (pre-aligned) Display: Graphic LCD (320x240 )DOT Keyboard Control: 29 Membrane keypad Output: RS-232C port Parallel Port (printer) Sample Compartment: Accommodates 100mm pathlength, cuvette with optional holder Printer: Epson Selected models Power Requiremen: 220V-240V/50Hz, 110V-120V/60Hz Dimensions (W x D x H): 620 x 400 x 280mm Weight: 24kg / 53 lbs Shipping Dimensions: 720 x 525 x 370mm Shipping Weight: 28kg / 62lbs
